This multifunction computer thermal cutting side sealing bag making machine is suitable for thermal cutting and bag making of printed and non-printed plastic films such as BOPP, OPP, and PE, etc. The heat sealing bag making machine is an ideal equipment for making sock bags, towel bags, bread bags, and ornaments bags, etc.
The side sealing bag making machine has the advantages of reasonable design structure, convenient operation and high degree of automation, and can be used for producing various composite materials for bag making, and is an ideal bag making device for producing middle sealing bags, side sealing bags and four side sealing bags.
Model | XYW-600 | XYW-700 | XYW-800 | XYW-900 | XYW-1000 |
Bag Width | 10-550mm | 10-650mm | 10-750mm | 10-850mm | 10-950mm |
Bag Length | 50-800mm | 50-800mm | 50-800mm | 50-800mm | 50-800mm |
Bag Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Speed | 40-180pcs/min | 40-180pcs/min | 40-180pcs/min | 40-120pcs/min | 40-120pcs/min |
Total Power | 3kw | 3.6kw | 3.8kw | 4.5kw | 4.7kw |
Weight of Machine | 800kg | 900kg | 1000kg | 1100kg | 1200kg |
Overall Dimension(LxWxH) | 3.3x1.0x1.7m | 3.3x1.1x1.7m | 3.3x1.2x1.7m | 3.3x1.3x1.7m | 3.3x1.4x1.7m |
This multifunction computer thermal cutting plastic sealing machine is suitable for thermal cutting and bag making of printed and non-printed plastic films such as BOPP, OPP, and PE, etc. It is an ideal equipment for making sock bags, towel bags, bread bags, and ornaments bags, etc.

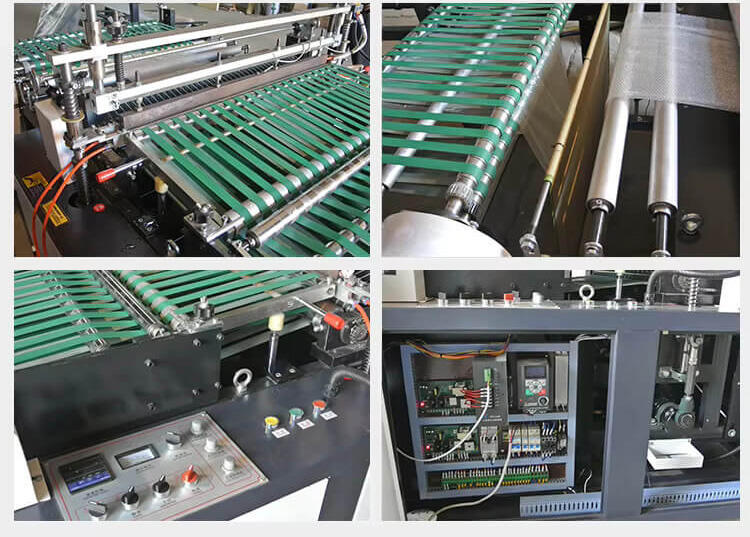

The plastic bag making machine adopts a micro-computer to control and a stepper motor to draw material (a servo motor control system can be selected) to flex length randomly with step-length photocell tracking accurately and steadily. When losing the aimed label, the machine will stop automatically. It also has a device for fixing two-sided sticky tape automatically, an auto-puncher, and an auto-counter. The bag is sealed thermally in regulated temperature to make the bag firm and flat.
1.Are you a factory or trading company?
We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Where is your factory loaded? How can I visit there?
Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Which industries are widely used in of your machine?
Bag making machine, film blowing machine, printing machine.
4.How about the payment term?
For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.What about your main market?
Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.How does your factory do regarding quality control?
Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
