SJCT- 600 /800mm Double Color Film Blowing Machine

Double color blown film extrusion machine for industrial PE film production. Increases output by 30%, energy-efficient, CE & ISO certified. Trusted by 500+ manufacturers globally.

  • Description
  • Specifications
  • Optional Equipment
  • Details
  • Common Optional Parts
  • Factory
  • FAQ

This is a two-color striped film blowing machine with a twin-screw design. Each extruder can use different colored color masterbatch, so it is able to produce colored film strips, such as red/white, blue/green/, black/white alternating films. Such films are mainly used for producing shopping bags or disposable tablecloths. They are very popular in African and Middle Eastern countries. If you don't add color masterbatch, then it can be used as a high-speed mono-layer blown film.

Double Color Film Blowing Machine manufacture

Model

SJCT-600

SJCT-800

Sleeve Width

100-600mm

100-800mm

Thickness

6-100 Micron

6-100 Micron

Capacity

30-65Kgs/H

40-75Kgs/H

Screw

45mm *2

55mm *2

L/D

30:1 or 32:1

30:1 or 32:1

Gear Box

#133 * 2

#146 * 2

Main Motor

15Kw * 2

18.5Kw * 2

HD Die Head

60mm Stripe Design

80mm Stripe Design

LD Die Head

120mm Stripe Design

150mm Stripe Design

Air Ring

Dual Lip 720mm

Dual Lip 780mm

Air Chiller

4.0 Kw

5.5 Kw

Winder

Automatic Single Winder

Power Supply

3Phases, 4 Lines, 380V/220V/415V/440V/480V, 50/60Hz

Total Power

50Kw

65Kw

Power Consume

30-70% of total installation power

Install Size

5.0*3.0*5.2M

5.2*3.2*5.5M

1. AUTO LOADER
2. CORONA
3. DIE ROTARY DEVICE
4. GRAVITY METRIC DEVICE

800mm double color film blowing machine-1

800mm double color film blowing machine-2
800mm double color film blowing machine-3
800mm double color film blowing machine-4

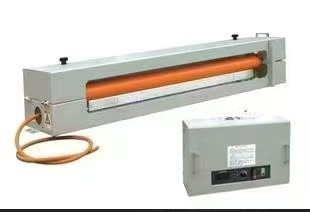

Corona Treatment Device

Corona Treatment Device.png

Meter Weight Control Device

Meter Weight Control Device.png

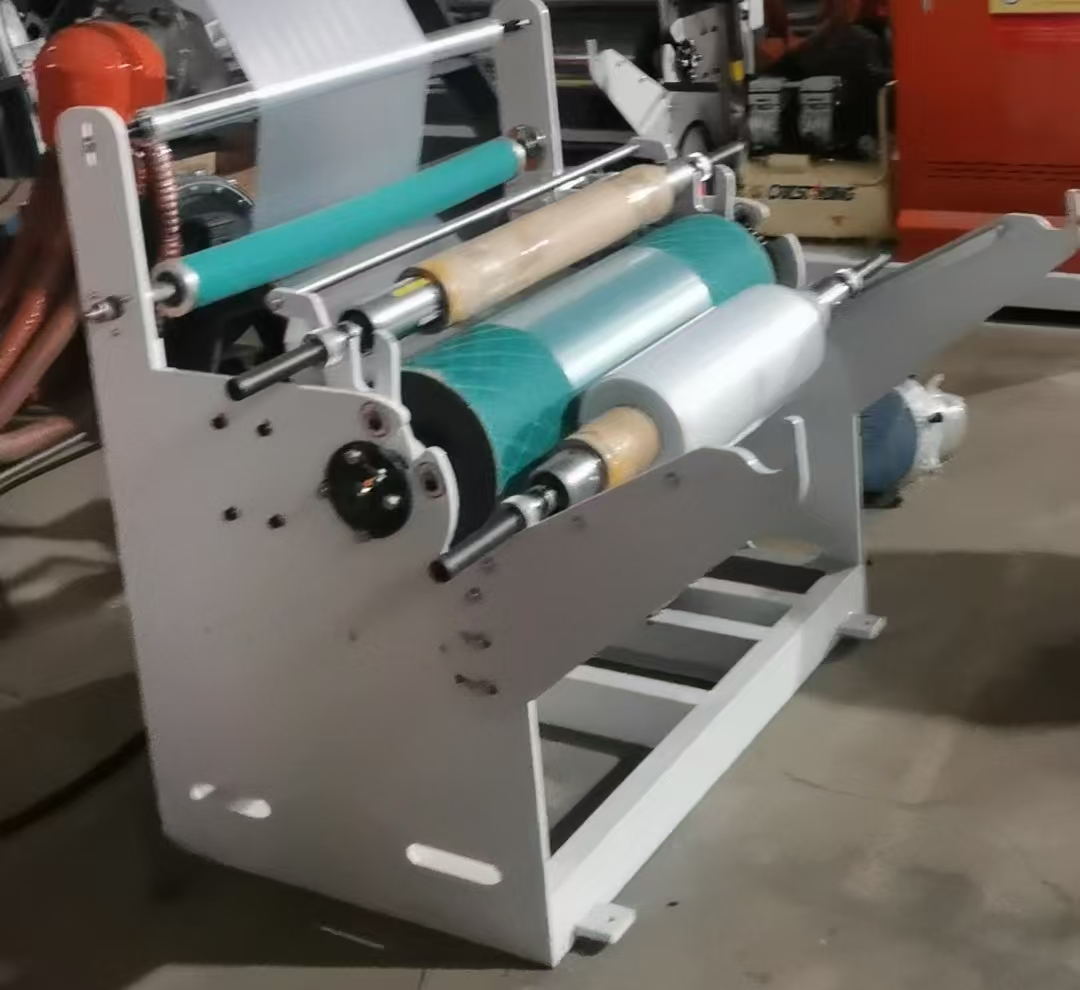

Semi Automatic Single Winder

Semi Automatic Single Winder.png

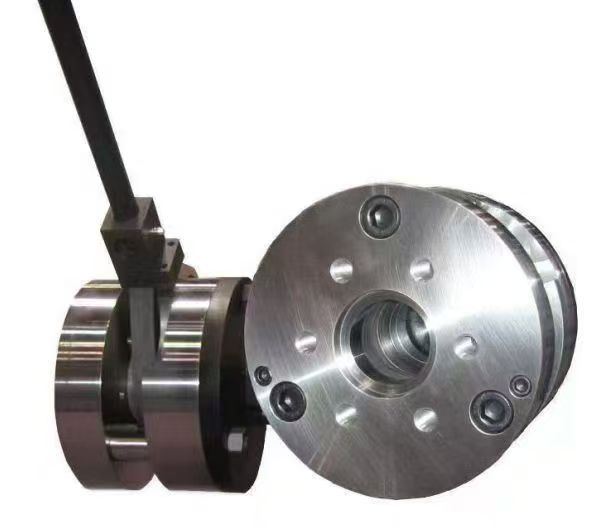

Fast Screen Change Device

Fast Screen Change Device.png

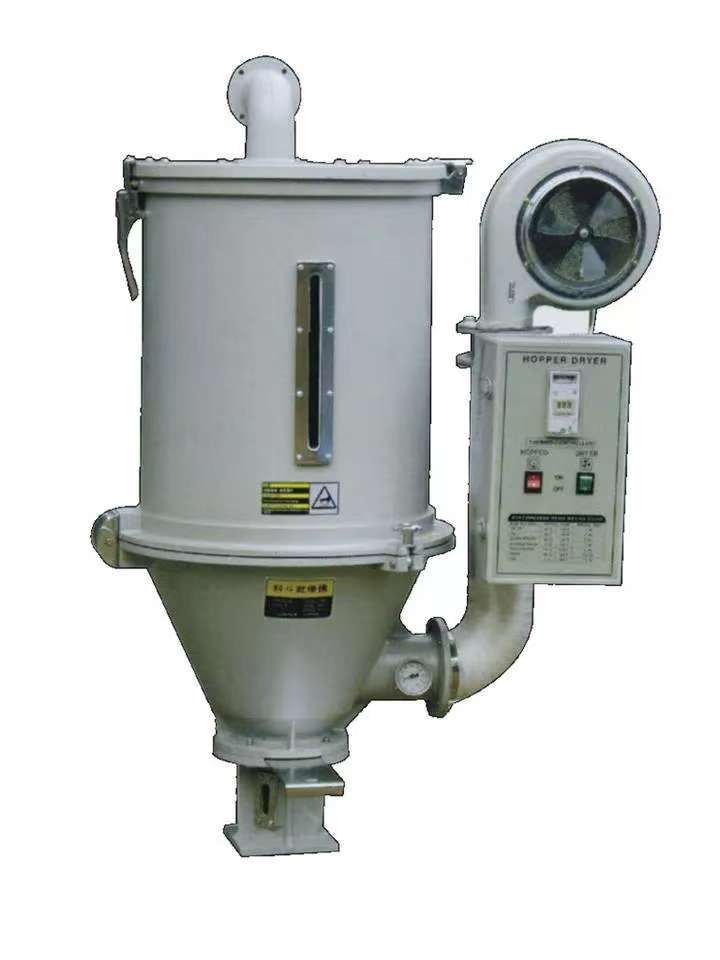

Hopper Dryer

Hopper Dryer.png

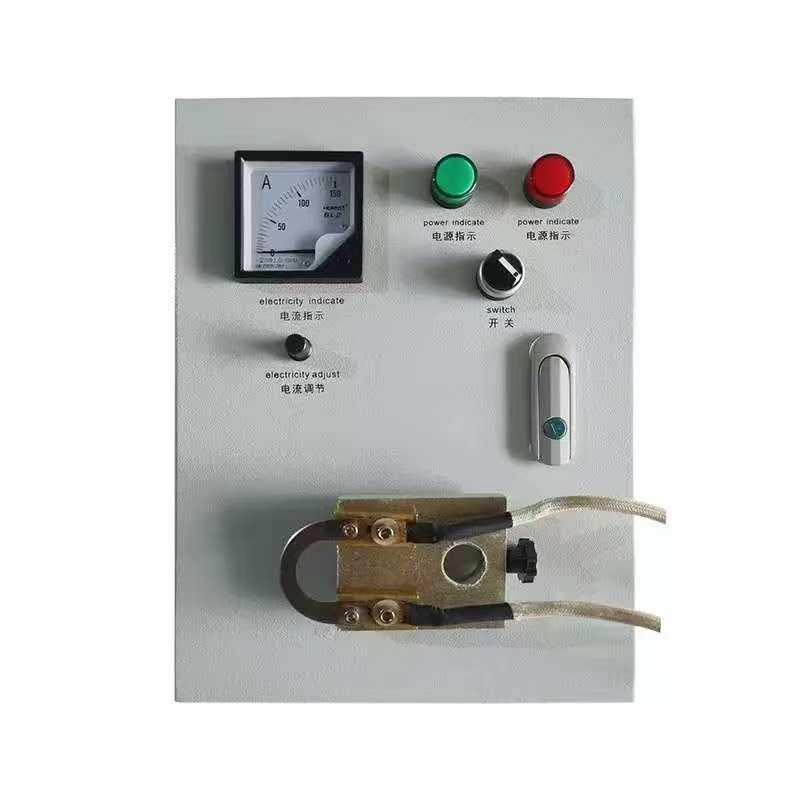

Hot Sealing&Slitting Blade

Hot Sealing&Slitting Blade.png

800mm double color film blowing machine-5

1.Are you a factory or trading company?
We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Where is your factory loaded? How can I visit there?
Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Which industries are widely used in of your machine?
Bag making machine, film blowing machine, printing machine.
4.How about the payment term?
For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.What about your main market?
Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.How does your factory do regarding quality control?
Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
