This is an economical two-color flexo printing machine, serving as an accessory for film blowing machines and bag-making machines. It is suitable for printing simple patterns or text. Its main advantages are low price and simple operation.

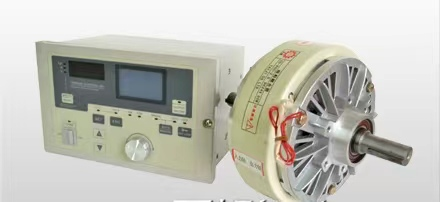

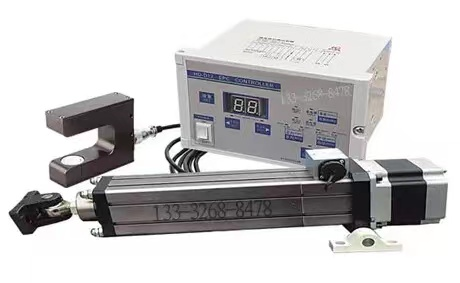

Common Upgrade Items
Common Model And Parameter 1
|
Model |
YT-2600 |
YT-2800 |
YT-21000 |
|
Unwinding Width |
600mm |
800mm |
1000mm |
|
Maximum Printing Width |
560mm |
760mm |
960mm |
|
Printing Length |
200-1000mm |
||
|
Suitable For |
PE / PP / BOPP /OPP/ PVC Film Etc. |
||
|
Number of Color |
2+0 or 1+1 |
||
|
Printing Speed |
60M/Min |
||
|
Drive Method |
Straight Gear |
||
|
Anilox Roller |
Metal Anilox Roller 2 Pcs. LPI Custom-made |
||
|
Plate Thickness |
1.7mm or 2.28mm or Custom-made |
||
|
Adhesive Tape Thickness |
0.38mm or 0.5mm or Custom-made |
||
|
Color Register |
Manually |
||
|
Power Source |
3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) |
||
Common Model And Parameter 2
|
Model |
YTB-2600 |
YTB-2800 |
YTB-21000 |
|
Unwinding Width |
600mm |
800mm |
1000mm |
|
Maximum Printing Width |
560mm |
760mm |
960mm |
|
Printing Length |
200-1000mm |
||
|
Suitable For |
PE / PP / BOPP /OPP/ PVC Film Etc. |
||
|
Number of Color |
2+0 or 1+1 |
||
|
Printing Speed |
80M/Min |
||
|
Drive Method |
Helical Gear |
||
|
Anilox Roller |
Ceramic Anilox Roller 2 Pcs. LPI Custom-made |
||
|
Doctor Blade |
2 Set |
||
|
Plate Thickness |
1.7mm or 2.28mm or Custom-made |
||
|
Adhesive Tape Thickness |
0.38mm or 0.5mm or Custom-made |
||
|
Color Register |
Manually |
||
|
Power Source |
3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) |
||
Common Model And Parameter 3
|
Model |
YTA-2600 |
YTA-2800 |
YTA-21000 |
|
Unwinding Width |
600mm |
800mm |
1000mm |
|
Maximum Printing Width |
560mm |
760mm |
960mm |
|
Printing Length |
200-1000mm |
||
|
Suitable For |
PE / PP / BOPP /OPP/ PVC Film Etc. |
||
|
Number of Color |
2+0 or 1+1 |
||
|
Printing Speed |
100M/Min |
||
|
Drive Method |
Helical Gear + Timing Belt |
||
|
Anilox Roller |
Ceramic Anilox Roller 2 Pcs. LPI Custom-made |
||
|
Doctor Blade |
2 Sets |
||
|
Plate Thickness |
1.7mm or 2.28mm or Custom-made |
||
|
Adhesive Tape Thickness |
0.38mm or 0.5mm or Custom-made |
||
|
Color Register |
Manually |
||
|
Power Source |
3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) |
||
