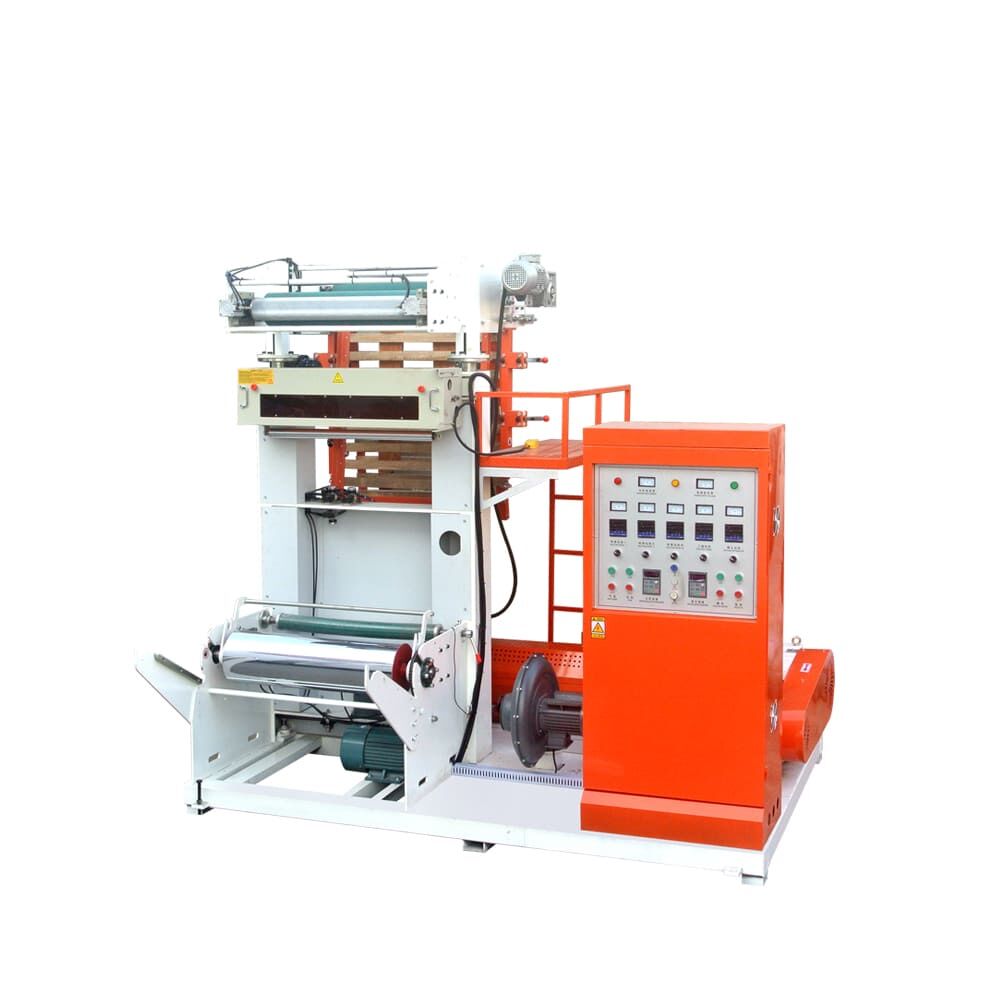

The compact design of the mini film blown machine is suitable for use in small businesses and laboratories, and can efficiently produce high-quality plastic films suitable for food packaging, shopping bags and industrial purposes.
| Model | XYMN-600 | XYMN-800 |
| Screw Diameter | 45mm | 55mm |
| Screw Ratio | L/D30:1 | L/D30:1 |
| Screw Speed | 10-100r/min | 10-100r/min |
| Power of Main Motor | 11kw | 15kw |
| Max.Extrusion Output | 20-45kg/h | 30-55kg/h |
| Max.Folding Width of Film | 600mm | 800mm |
| Thickness of Film | 0.008-0.10mm | 0.008-0.10mm |
| Total Power | 28kw | 35kw |
| Weight of Machine | 2000kg | 2500kg |
| Overall Dimension（LxWxH） | 2.7x1.8x3.8m | 2.8x1.9x3.9m |
1. AUTOLOADER
2. CORONA TREATER
3. DIE ROTARY DEVICE
4. DOSING DEVICE
5. HIGH SPEED NET CHANGER
Mini type film blowing machine can largely save energy, labor, workshop space, etc. The extruding cylinder and screws are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision processing. The specially designed screw ensures high output and good plasticization. It is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE) plastic film, which is widely used in packaging food, clothing, bags, waste bags, etc.
