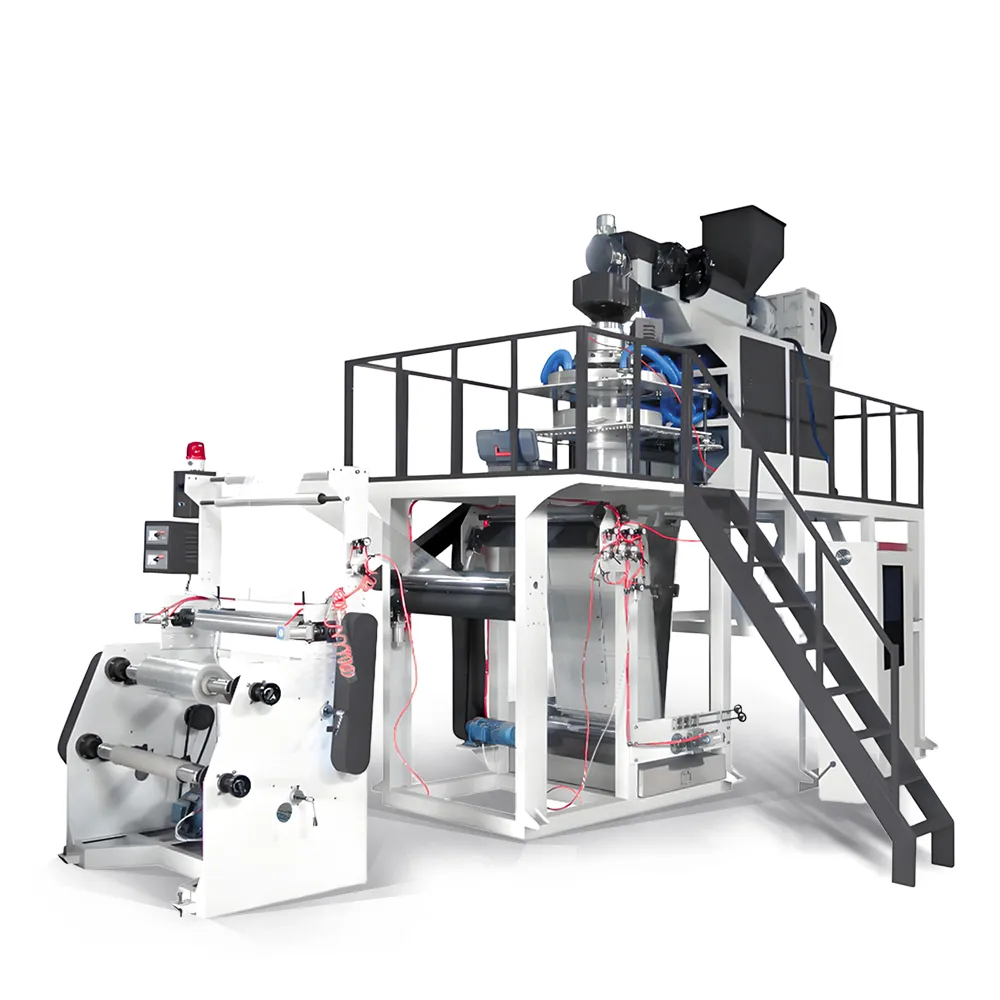

Setting Up a PP Blown Film Machine: Step-by-Step Guide

Polypropylene (PP) film, due to its high transparency, strength, and heat resistance, is widely used in food packaging, daily necessities, pharmaceuticals, textiles, and other fields. During the production process, correct setup of the PP film blowing machine is crucial to ensuring uniform film thickness, a smooth surface, and stable physical properties. However, many operators often focus solely on output while neglecting standardized setup procedures, resulting in inconsistent product quality. This article provides a systematic, step-by-step guide to setting up a PP film blowing machine to help companies improve production efficiency and product quality.

1.Understanding the PP Blown Film Machine and Its Core Components

At the heart of polypropylene (PP) film manufacturing lies the precision-engineered pp blown film machine, where four components orchestrate material transformation.

1.1 Key components of blown film extrusion line: Hopper, barrel, screw, and die

It all starts at the hopper, where those raw PP pellets get fed into the system. Once inside, they move along into this heated barrel section. There's a big rotating screw inside that creates enough friction to melt the plastic material evenly throughout. As the melted PP moves forward, it passes through what we call an annular die, basically shaping everything into this long tube-like bubble as it goes. And here's the thing - every single part of this whole setup needs to stay within pretty tight temperature ranges and mechanical specs. If something gets off even just a little bit, we end up with those annoying flow issues that nobody wants to deal with during production runs.

1.2 Role of polypropylene in film production and material feeding process

Polypropylene is pretty amazing stuff when it comes to transparency, keeping out moisture, and holding up under stress. That makes it great for wrapping food items and making those industrial plastic films we see everywhere. When processing polypropylene, manufacturers typically drop the pellets into the hopper either by gravity or through vacuum systems. They also need to keep moisture content really low during this stage, around half a tenth of a percent or less, which helps prevent bubbles from forming in the final product. The melt flow index, or MFI as it's called in industry circles, plays a big role in how well the material works during extrusion processes. Most companies find that grades between 3 to 5 grams per 10 minutes strike the right balance between being easy to work with and maintaining good structural integrity after production.

2.3 Extruder operation and die design considerations for optimal output

The extruder screw utilizes distinct zones—feed, transition, and metering—to progressively homogenize PP at 190–230°C. Die design significantly influences output quality through:

• Lip gap uniformity: ±0.001" tolerance minimizes thickness variation
• Mandrel design: Streamlined flow paths prevent stagnation
• Air cooling calibration: Dual-lip air rings ensure bubble stability during rapid solidification
  When properly balanced, these elements prevent melt fracture and support high-throughput production, exceeding 80 kg/hr for 1.5 m dies.

2.Pre-Startup Preparation and Safety Checks for PP Blown Film Machine

2.1 Machine startup sequence: Hopper, extruder, and rollers alignment

First thing to check is whether there are enough PP pellets in the hopper. The extruder zones need to hit those target temps we set before turning on the screw motor. Got to make sure everything's lined up right too. Use those laser levels for roller alignment and keep an eye on the gap between rollers all along the collapsing frame and at the nip points where materials pass through. When things are sequenced properly, it really helps avoid those frustrating issues with uneven tension or materials getting stuck during the first few production runs. Trust me, taking these extra steps upfront saves headaches later on.

2.2 Inspection of extruder components and temperature calibration

First things first, take a good look at that screw for signs of wear and check if there's any residue built up inside the barrel. Getting these basics right makes a world of difference later on. When it comes to temperature control, make sure those thermocouples are actually reading correctly compared to infrared measurements, keeping them within about 3 degrees Celsius either way. Then get all the heating zones warmed up to where they need to be for polypropylene processing. Don't forget to document those temperature readings somewhere accessible so everyone knows what's going on during different shifts. And while we're at it, give those die lips a thorough inspection for any nicks or chips. Small imperfections here can cause major headaches when trying to get the melt flowing smoothly right from startup.

2.3 Safety checks and lubrication of moving parts in pp blown film machine

Before turning on any motors, make sure those emergency stop buttons work properly and check if the safety signs can actually be seen all along the extrusion line. When it comes time for lubrication, apply high temp lithium complex grease (needs to handle over 150 degrees Celsius) to those bearings, bushings and gears. Don't forget to wipe off any extra grease though because too much just creates mess and possible contamination issues. After doing maintenance work, always double check that all protective guards are back in place and fastened correctly. Following these basic steps helps prevent breakdowns caused by friction problems and keeps machines running reliably day after day in most manufacturing environments.

3.Executing the Blown Film Extrusion Process: Melting, Bubbling, and Cooling

3.1 Initiating the Blow-Film Extrusion with Controlled Temperature and Screw Speed Settings

Set extruder temperature zones to 190–230°C for polypropylene and adjust screw speed to 25–45 RPM. These settings ensure stable material flow while minimizing thermal degradation. Maintaining ±2°C temperature control is essential, as deviations can reduce output quality by up to 15%. Real-time monitoring supports consistent extrusion performance.

3.2 Polymer Melting and Homogenization Inside the Barrel of the Extruder

As PP pellets move through the barrel, shear forces from the rotating screw melt and mix the polymer. The compression zone must achieve ≥95% homogenization to eliminate unmelted particles, which can cause defects such as gels or streaks in the final film.

3.3 Die Operation and Maintenance During Initial Film Formation

The annular die shapes the molten PP into a tubular profile. Clean die lips and uniform heating (within 1°C variation) are crucial to prevent thickness fluctuations. A poorly maintained die can increase scrap rates by up to 20% during startup, emphasizing the need for routine inspection and cleaning.

3.4 Formation of the Molten Polymer Bubble in the Blown Film Extrusion Process

Compressed air (0.5–2 bar) inflates the molten tube into a bubble 2–3 times the die diameter. Symmetrical airflow is essential to prevent bubble tilt, which leads to uneven stress distribution and compromises the film’s mechanical integrity.

3.5 Cooling System (Air Ring) Adjustment for Uniform Film Solidification

Position the air ring 50–100 mm above the die exit, delivering laminar airflow at 15–25 m/s. Adjust air velocity gradients so the bubble solidifies within 1.5–3 meters. Slower cooling increases haze, while overly rapid cooling reduces elasticity and film toughness.

3.6 Air Ring and Bubble Stabilization Techniques to Prevent Oscillations

Internal bubble cooling (IBC) systems enhance bubble stability during ascent. Ultrasonic sensors detect diameter deviations of 3% or more and automatically adjust haul-off speed or air pressure, reducing thickness variability to ±5%.

4.Controlling Film Dimensions: Blow-Up Ratio, Thickness, and Haul-Off Speed

4.1 Blow-up ratio (BUR) adjustment and its effect on film width and strength

Blow up ratio or BUR for short is basically what controls the size of PP films. When we calculate it by dividing bubble diameter by die diameter, we get our main indicator for film dimensions. Raising the BUR makes the bubble bigger which results in wider but thinner films. These have better strength along the machine direction but tend to tear more easily across the width. Most manufacturers find that keeping BUR between 2 to 4 works best for polypropylene products. This sweet spot balances out strength characteristics, resistance to punctures, and how clear the material appears visually. Maintaining steady air pressure during production remains absolutely critical though. Without consistent pressure levels, the BUR fluctuates and so do the barrier properties of the final product, leading to quality issues down the line.

4.2 Monitoring and fine-tuning film thickness using automatic gauge control

AGC systems rely on infrared sensors to spot when thickness goes beyond the acceptable range of plus or minus 5 percent, which then causes immediate changes to those die lip actuators. These days, most polypropylene blown film machines can hit measurements down to the micron level because they match up the extruder speed with both bubble uniformity ratios and how fast things cool down. What makes these systems really work well is their closed loop feedback mechanism that automatically adjusts to fluctuations in resin viscosity. This means manufacturers get consistently good quality products even when raw materials aren't perfectly stable from batch to batch.

4.3 Relationship between haul-off speed and film gauge consistency

The speed at which material is pulled away during processing directly affects how crystals form and molecules align themselves. When this speed gets too high, we start seeing problems like thin areas in the product and weakened molecular structures. Research indicates that going beyond the recommended speed limits can lead to thickness variations as much as 15%, especially when pushing past those limits by about 30%. On the flip side, if the haul-off speed drops too low, there's not enough force to properly shape the material, resulting in loose, saggy products instead of the desired form. Getting the timing right between the haul-off rollers and the air pressure used to inflate the bubble makes all the difference. This synchronization helps keep things consistent in size and shape while also making sure production lines run smoothly and efficiently without unnecessary waste.

5.Optimizing Winding, Output Consistency, and Startup Efficiency

5.1 Film Collapsing and Winding Processes: Nip Rolls and Layflat Configuration

Nip rolls guide the collapsed film tube into layflat configuration before winding, ensuring uniform alignment. Proper gap adjustment prevents air entrapment and maintains consistent width. Operators typically set nip pressure between 15–25 psi, adjusted according to PP resin viscosity and target film thickness.

5.2 Tension Control During Winding to Prevent Wrinkles and Stretching

Maintaining tension between 2–4 N/mm² prevents stretching and edge wrinkling. Modern systems use load-cell feedback to adjust tension in real time, compensating for increasing reel diameter. Improper tension is responsible for approximately 30% of production waste during initial runs, highlighting the importance of precise control.

5.3 Automated Winding Systems and Their Integration With the Extrusion Line

Automated turret winders integrate with line speed (20–150 m/min) via PLC controls, enabling seamless reel changes without stopping production. These systems maintain ±0.5% tension variance—significantly tighter than the ±5% typical of manual setups—resulting in higher output consistency and reduced operator intervention.

5.4 Troubleshooting Common Issues During Initial Production Runs

Common startup challenges in PP blown film production include:

• Gauge variation: Check die lip alignment and air ring calibration
• Bubble instability: Adjust IBC (Internal Bubble Cooling) pressure ratios
• Edge weave: Verify nip roll parallelism within 0.1 mm tolerance

5.5 Reducing Startup Waste by 25% Through Optimized Heating Profiles

Implementing ramped heating profiles that gradually increase barrel temperatures (Zone 1: 180°C → Zone 5: 230°C) reduces thermal degradation during PP resin transition. According to data from Plastics Engineering (2022), this method lowers first-hour material waste from 12% to 9%, improving startup efficiency and yield.

5.6 Best Practices for Shift Transitions and Process Documentation

Ensure production continuity across shifts by:

1. Maintaining digital job logs that record temperature, screw speed, and BUR settings
2. Scheduling 30-minute overlapping transition periods for parameter verification
3. Conducting standardized QC checks on the first 20 meters of each new reel

Modern PP blown film machines equipped with automated data historians capture over 500 process parameters per second, enabling accurate replication of successful production runs and strengthening process traceability.

FAQ

1.What is a PP blown film machine?

A PP blown film machine is a type of extrusion equipment used to transform raw polypropylene pellets into thin plastic films.

2.Why is polypropylene used in film production?

Polypropylene is favored for its transparency, moisture resistance, and strength, making it ideal for food packaging and other industrial films.

3.What is the role of the extruder screw in the machine?

The extruder screw helps melt and homogenize the polypropylene by creating friction and heat as it rotates.

4.How can I optimize film thickness?

Utilizing automatic gauge control systems and monitoring real-time data helps maintain consistent film thickness within desired tolerances.

5.How does blow-up ratio affect film properties?

The blow-up ratio influences film width and thickness, thereby affecting tensile strength and barrier properties.
